Waterproof PVDF Aluminum Composite Panel
PVDF Aluminum Composite Panel
PVDF Aluminum composite panel consists of two painted aluminum panels bonded to a polyethylene (PE) core material. ACM panels are excellent materials for indoor or outdoor applications, which require good dimensional stability, low weight, and a smooth, bright appearance.
Lightweight: With only half the weight of aluminum, it is much easier to handle and install. This not only reduces the physical effort required during installation but also puts less stress on the supporting structure.
Technical Specifications
| Parameter |
Specification |
| Normal Width |
1220mm, 1250mm, 1500mm, 2000mm and custom accepted |
| Panel Length |
2440mm, 3000mm, 5000mm, 5800mm, normally within 5800mm (for 20ft container custom accepted) |
| Panel Thickness |
2mm, 3mm, 4mm, 5mm, 6mm, 8mm... |
| Aluminum Alloy |
AA1100, AA3003, AA5005...(Other Grade On Requirement) |
| Aluminum Thickness |
0.03mm to 0.50mm |
| Weight |
3mm: 8kg-13.3kg per piece
4mm: 12.7kg-27.89kg per piece |
| Coating |
PE coating, PVDF coating, NANO, Brush surface, mirror surface |
| Core Material |
Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color |
Metal/Matt/Glossy/Nacreous/Nano/Brushed/Mirror/Granite/Wooden |
Why Choose Our PVDF White ACP for Exterior Projects?
Our PVDF White Aluminum Composite Panels are specifically engineered for high-rise building facades and exterior cladding projects in demanding climates, such as Southeast Asia and Central Asia.
1. Superior Weather Resistance (20-Year Guarantee)
Utilizing a 70% fluorocarbon resin (PVDF) coating, these panels offer extreme resistance to UV radiation, salt spray, and atmospheric pollution. This ensures that the matte white finish remains vibrant without chalking or fading for over 20 years.
2. High Peel Strength and Structural Integrity
With a 180° peel strength exceeding 7.0 N/mm, our panels maintain excellent bonding between the aluminum skin and the LDPE core, preventing delamination even under significant thermal expansion and contraction.
3. Self-Cleaning & Low Maintenance
The PVDF coating provides a low surface energy finish, allowing dust and pollutants to be washed away by rainwater, significantly reducing building maintenance costs.
4. Advanced Fire Safety Standards
Available in B1 and A2 fire-rated cores, our materials comply with international safety standards, making them ideal for modern high-rise envelopes.
Manufacturing Capabilities
Experience Meets Innovation. Although our state-of-the-art facility moved to WENXIAN in 2021, our core team brings over 20 years of specialized experience in the production of Aluminum Composite Panels (ACP) and Aluminum Veneers.
- Established Facility: Located in WENXIAN since 2021, specializing in professional grade ACP and veneers.
- Scale: Over 30,000 square meters of production space with 100+ skilled employees.
- Advanced Equipment: We utilize high-end precision instruments imported from Japan to ensure consistent quality across every batch.
- Production Capability: 100,000sqm per month, ready to support large-scale international infrastructure projects.
Applications
Constructional exterior curtain walls
Decorative renovation for store-added old buildings
Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies
Galleries, exhibition, saloons, stores, offices, banks, hotels, restaurants and apartments
Advertisement board, display platforms and signboards
Raw materials in industrial purpose
Materials used for vehicle and boat

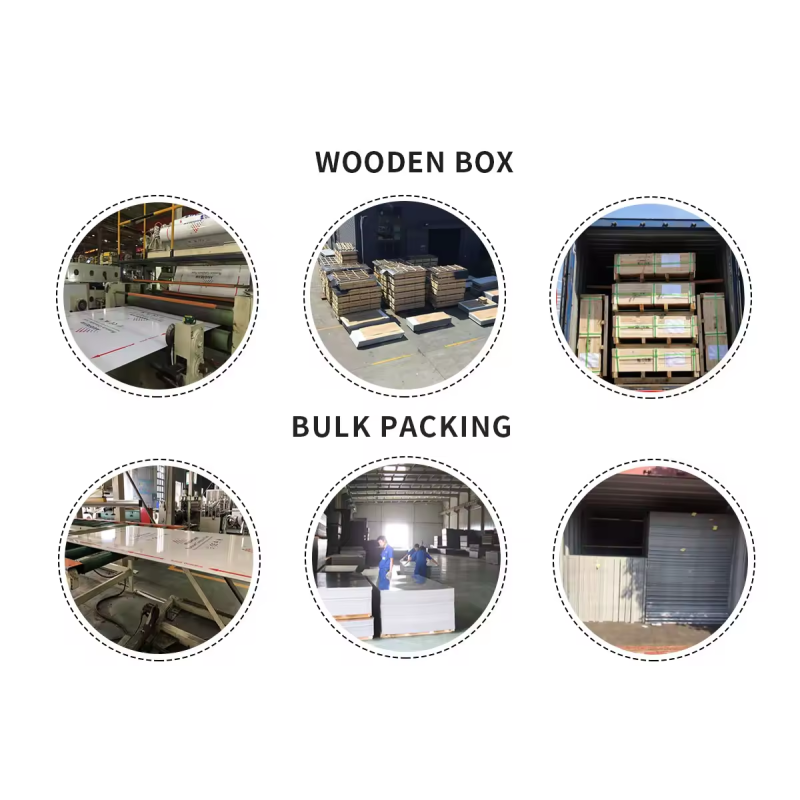

Packaging & Shipping
The panels are first wrapped in protective film to prevent any scratches or damage during transportation. They are then packed in strong wooden crates for added protection.
Each crate is labeled with the product name, size, and quantity for easy identification. Additional padding and cushioning materials are used to fill any empty spaces and provide extra protection.
Shipping Options
- For international orders, we work with trusted shipping companies
- Expedited shipping available for urgent orders
- Careful monitoring of shipping process to ensure perfect condition delivery
Order Information
Delivery: Within two weeks after receiving deposit
MOQ: 300 Sqm
Brand/OEM: Alumetal/Customized
Payment Terms: T/T, L/C at sight, D/P at sight,
Packing: FCL: In bulk; LCL: In Wooden pallet Package; according customers' requirement
